HMCR 03 Piston Type Rexroth Hydraulic Motor 125 - 250 R/Min

Brand Name : Helm Tower

Model Number : MCR03

Certification : ISO 9001

Place of Origin : Ningbo

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000 units per month

Delivery Time : 15 working days

Packaging Details : Standard Export Wooden Case

Type : Piston motor

Color : Customized

Rated Speed : 125-250 r/min

Max.Torque : 650-1620 N.m

Rated pressure : 25 MPa

Warranty : 1 year

Contact Now

Hydraulic rexroth MCR03 piston type hydraulic motor

1. Product Features:

HMCR 03 Hydraulic Piston Motor:

1) Radial piston type;
2) Adopt Imported Bearing and Oil Seal, etc;
3) The perfect replacement of Rexroth same series motor;
4) Designed in control modules,combine freely;
5) High efficiency, high pressure, low noise;
6) Low speed, High torque.

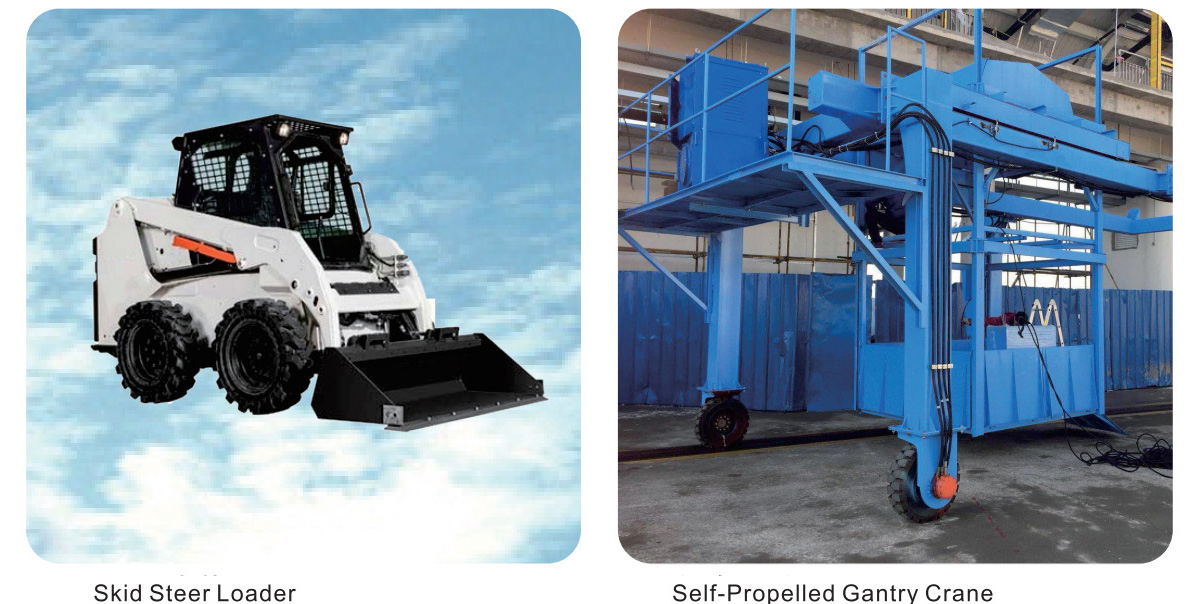

2. Applications:

Mining Machinery: Coal Winning Machine, Road Header,Scraper,Heavy Duty Handling Car,Coal Mine Drill.

Engineering Machinery: Skid Steer Loader,Down-the-hole Drill,Rotary Drill,Mini and Midi Excavators,Mixer Truck, Cutting Machine.

Marine Machinery: Gantry Crane.

3. Specifications:

Type HMCR 03-225 HMCR 03-255 HMCR 03-280 HMCR 03-325 HMCR 03-365 HMCR 03-400
Displacement(ml/r) Full Semi Full Semi Full Semi Full Semi Full Semi Full Semi
255 125 255 125 280 140 325 160 365 180 400 200
Max power(kw) 18 12 18 12 18 12 22 14 22 14 22 14
Pressure discrepancy 10MPa Torque 405 202 405 202 445 222 517 258 580 290 636 318
Rated compressor(MPa) 25

Max Torque(N.m)

(Full displacement)

 1386 1570 1760 1875 2105 2307
Max pressure(MPa) 40 40 40 40 40 40
Rated speed (r/min) 320 280 260 240 240 240
Speed range(r/min) 10-400 10-360 10-330 10-310 10-280

10-260

HMCR 03 Piston Type Rexroth Hydraulic Motor 125 - 250 R/MinHMCR 03 Piston Type Rexroth Hydraulic Motor 125 - 250 R/Min

HMCR 03 Connection Dimension

HMCR 03 Piston Type Rexroth Hydraulic Motor 125 - 250 R/Min

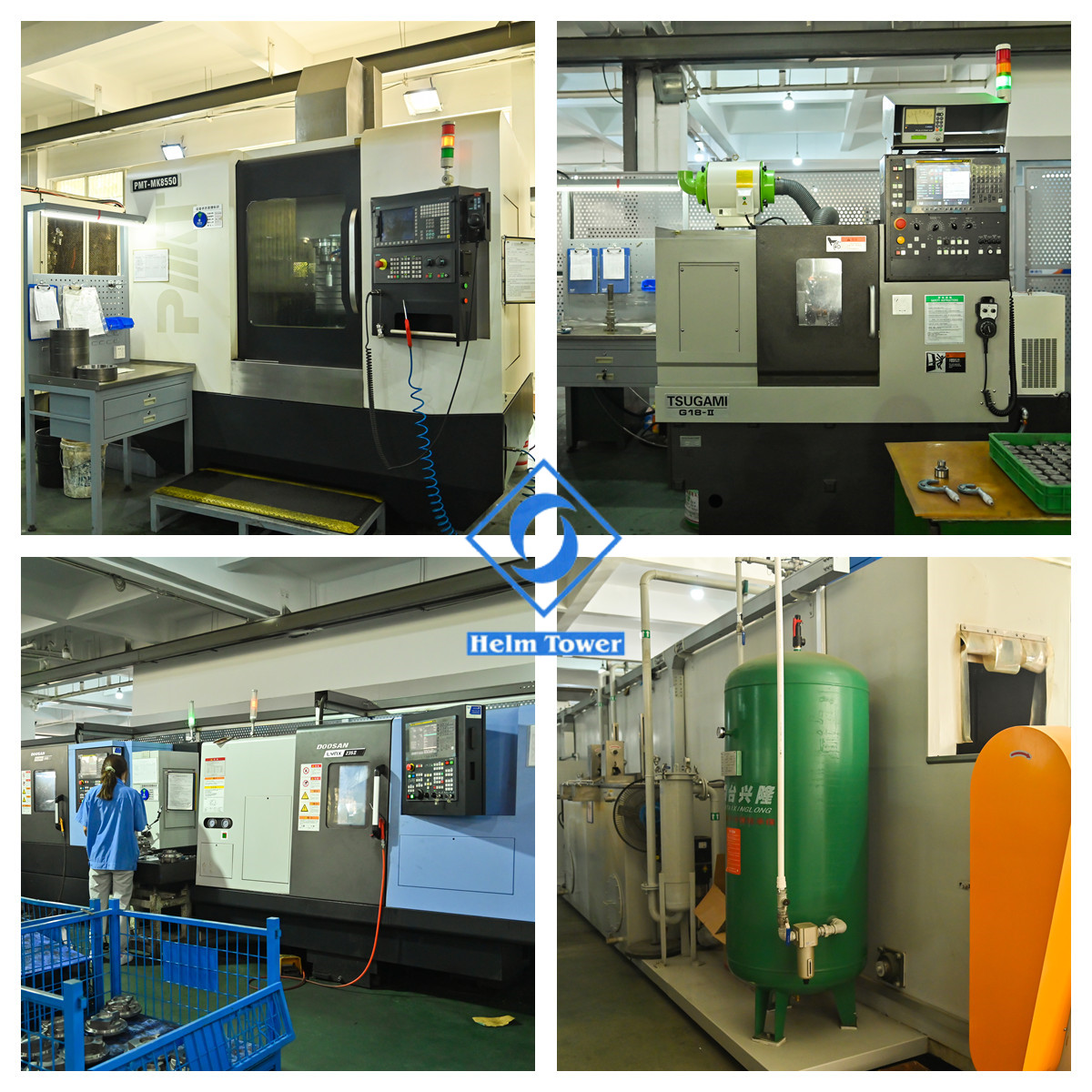

Workshop View:

HMCR 03 Piston Type Rexroth Hydraulic Motor 125 - 250 R/Min

HMCR 03 Piston Type Rexroth Hydraulic Motor 125 - 250 R/Min

HMCR 03 Piston Type Rexroth Hydraulic Motor 125 - 250 R/Min

Quality Control:

HMCR 03 Piston Type Rexroth Hydraulic Motor 125 - 250 R/Min
